Guard Column Cartridges, RP C4, 5um, 100A. 4.0mm ID x 10mm Length. Cogent Brand. 5/PK.
Additional Information:
Cogent RP C4™ Guard Column Cartridges are designed to protect valuable analytical HPLC columns from particulates, strongly retained compounds, and sample contaminants that can reduce column performance and shorten column life. Packed with the same RP C4™ stationary phase used in Cogent analytical columns, these guard cartridges help maintain method consistency while extending analytical column service life. The stationary phase consists of a four-carbon butyl ligand bonded to ultra-high purity silica and is fully double end capped for reproducible reversed-phase performance.

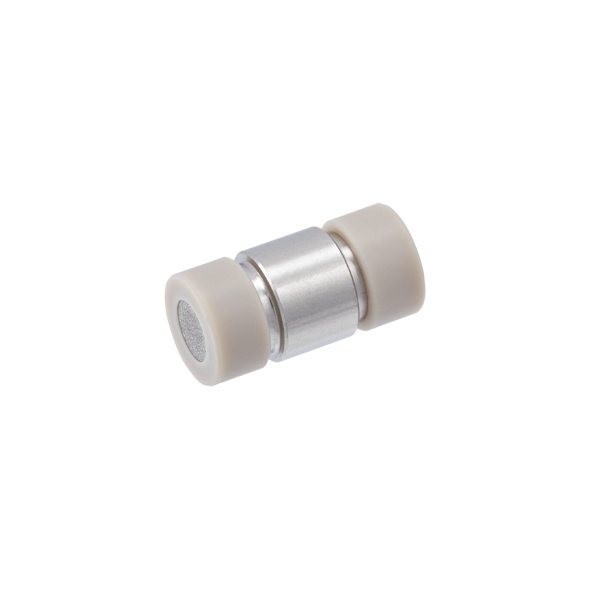

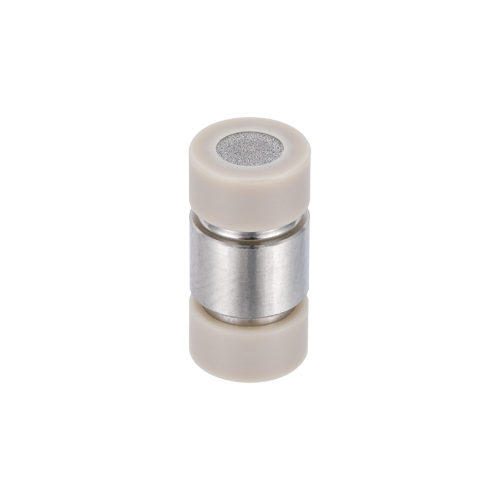

68504-PG2 is a guard column cartridge set packed with 5 µm RP C4™ particles featuring a 100 Å pore size in a 4.0 mm ID x 10 mm format. Designed to protect 3.0 mm, 4.0 mm, and 4.6 mm ID RP C4 analytical columns, these cartridges capture particulates and contaminants before they reach the analytical column bed. The cartridges are constructed using stainless steel tubes with stainless steel frits pressed into PEEK frit caps for durability and reliable operation. This package contains five guard column cartridges.
Routine replacement of guard cartridges helps maintain column efficiency, preserve chromatographic performance, and reduce the cost of analytical column replacement. These cartridges are ideal for routine HPLC, pharmaceutical analysis, method development, quality control testing, and research applications where protecting analytical columns is essential for maintaining reproducible results.
Key Benefits
RP C4™ stationary phase
USP L26 equivalent chemistry
Butyl (C4) bonded phase
Fully double end capped
Ultra-high purity silica support
Protects analytical columns from contamination
Extends analytical column lifetime
Maintains chromatographic performance
5 µm particle size
Supplied as a 5-pack
Typical Applications
Reversed-phase HPLC
Analytical HPLC
Method development
Pharmaceutical analysis
Quality control testing
Hydrophobic compound analysis
Neutral compound analysis
Research and development
Routine laboratory testing
Analytical column protection
Specifications
Product Type: Guard Column Cartridge
Stationary Phase: RP C4™
USP Classification: L26
Chromatography Mode: Reversed Phase
Bonded Phase: Butyl (C4)
Endcapping: Fully Double End Capped
Particle Size: 5 µm
Pore Size: 100 Å
Cartridge Dimensions: 4.0 mm ID x 10 mm
Hardware: Stainless Steel Tube with Stainless Steel Frits and PEEK Frit Caps
Quantity: 5/PK
Brand: Cogent
Important Notes
Designed to protect 3.0 mm, 4.0 mm, and 4.6 mm ID RP C4 analytical columns from particulates and contaminants
Maintains column efficiency and chromatographic performance
Helps extend analytical column service life
Suitable for routine HPLC and method development applications
Constructed with durable stainless steel and PEEK hardware
A Cogent Guard Column Holder (83000-GH) is required for use with these guard column cartridges
Supplied as a convenient 5-pack
